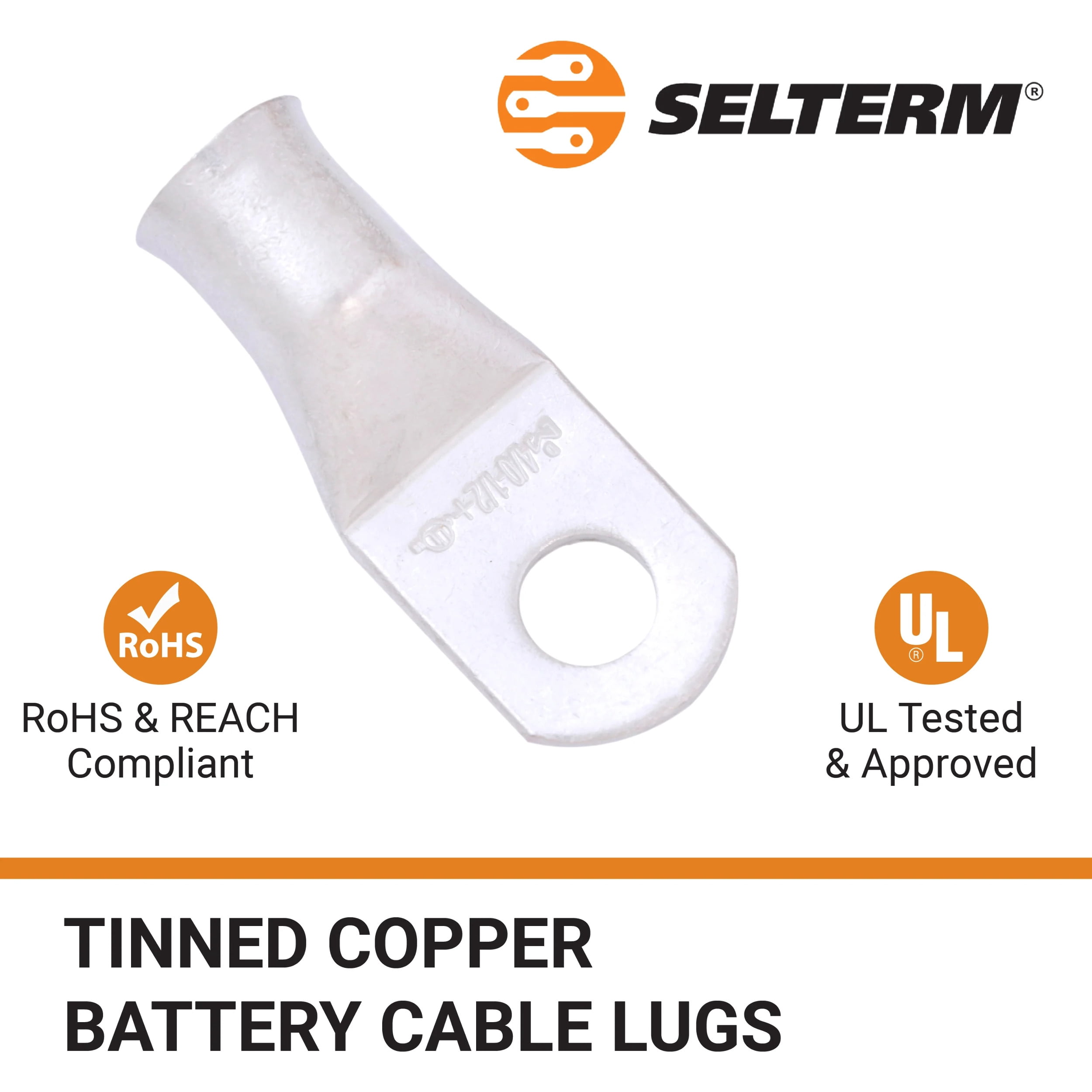

SELTERM 4/0 AWG XL 1/2" Ring Battery Cable End Terminal Lugs Marine Grade 5ea

<div><strong>SELTERM Marine Grade Wire Lugs are made from 99.9% pure annealed tinned copper, providing a high degree of conductivity for maximum current flow. This particular variant is generally suitable for use with higher flex 4/0 or 0000 Gauge Battery Cable &amp; 1/2" (M12) Stud.</strong></div><p>&nbsp;</p><p>&nbsp;<strong>Specifications</strong></p><div><ul><li><strong> Manufacturer part no. :</strong> MD4012PXL</li><li><span> <strong> Wire gauge:</strong></span><span>&nbsp;</span>4/0 AWG (0000 Gauge)</li><li><span> <strong> Stud size:</strong></span> 1/2" (M12)</li><li><strong> Pad width:</strong> Regular</li><li><strong>Barrel orientation:</strong> Straight</li><li><strong>Material:</strong> Copper</li><li><strong> Terminal type</strong>: Ring Terminal</li><li><span> <strong>Insulation material:</strong></span> Non-Insulated</li><li><strong>Industry Standard</strong>: UL (File # E254830), SAE</li><li><strong>Voltage rating (VDC)</strong>:<span> 600</span></li><li><strong>Temperature rating (ºC):</strong><span> 90</span></li><li><strong>Max current (A):</strong><span><span>&nbsp;405</span></span></li></ul></div><p>&nbsp;<strong>Compliance</strong></p><div><ul><li><strong>RoHS:</strong> Compliant</li><li><strong>REACH (SVHC):</strong> Not Contained Per - D(2021)4569 - DC (8 July 2021)</li><li><strong>COO (Country of Origin):</strong> India</li></ul></div><div>&nbsp;<strong>Competitor Part Cross-reference</strong><br></div><div><ul><li><strong>Molex:</strong> 192210372</li><li><strong>Quick Cable:</strong> -</li><li><strong>ASK:</strong> -</li><li><strong>EMC:</strong> 40503-1</li><li><strong>FTZ:</strong> -</li></ul><p><strong>DISCLAIMER:</strong> Some cable manufacturers oversize the gauge of their cables (especially common with audio cables). We always encourage customers to review our product dimensions before making a purchase.</p><p><strong>WARNING:</strong> These lugs are not conducive for use with any aluminum cables apart from CCA cables.</p></div>

• Selterm marine grade battery cable ends are made from 100% annealed tinned copper, providing a high degree of conductivity for maximum current flow. This particular variant is generally suitable for use with higher flex 4/0 or 0000 Gauge Wire & 1/2" Eye (M12) Stud
• Approved by OEMs, our tinned copper wire lugs are corrosion free; ideal for marine, automotive or outdoor use; salt spray tested to ASTMB117 standard. Special matte tin plating make these lugs easy to solder

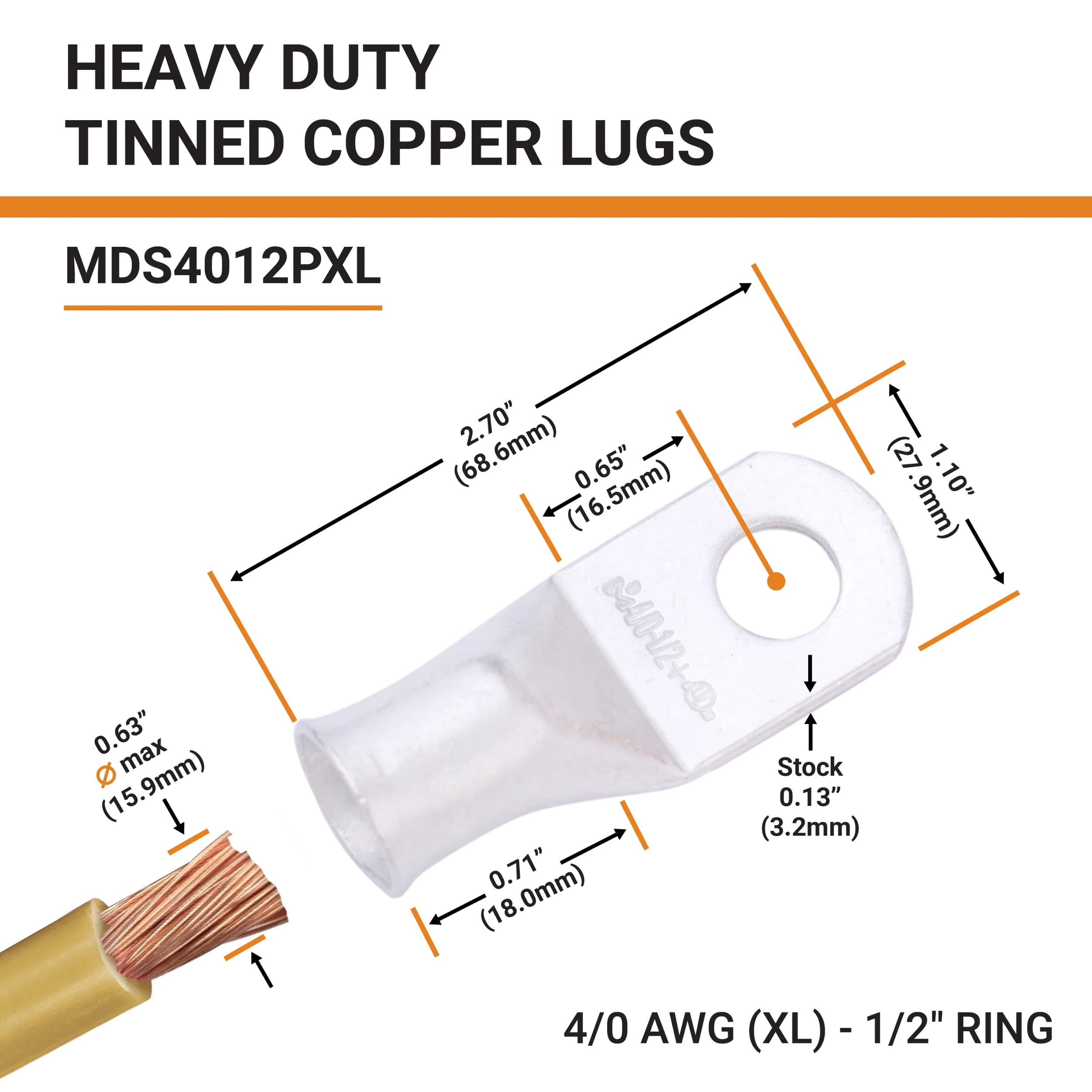

• Choose from a variety of wire and stud sizes that fits your application; Can be crimped or soldered; Use with a compatible copper cable; Product dimensions provided in the secondary image
